Layers

The Layers window appear when you click the Layers button or click next to Dynamic Layers in the Legend area.

System Layers

The System Layers tab contains a list of pre-defined layers that you can add the map.

Layers are divided by category on the left side. Click a category to select it. The layers and sub-categories associated with the category appear.

Subcategories have either a   (Expand) or a (Collapse) button next to them. Each individual layer has a checkbox. Select the checkbox to include the layer on the map.

Click on a layer's name to display its attributes, including record count and the last modified date of layer data.

My Layers - Click this tab to access the My Layers tab.

External Layers -Click this tab to access the External layers  tab.

Filter Layers - Type text in this field to filter the list of layers. The list will show only layers that contain the text entered.

(Expand) - Click to expand the list of layers.

(Collapse) - Click to collapse the list of layers.

Add to Map - Click this button to add the selected layers to the map.

Cancel - Click this button to close the window without adding a layer to the map.

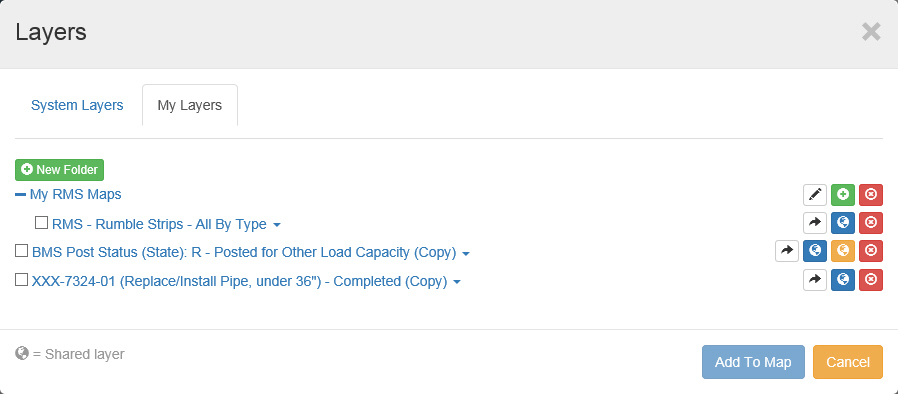

My Layers

The My Layers tab contains layers you have saved for your use.

System Layers - Click this tab to access the System Layers tab.

New Folder - Click this button to add a folder that you can use to organize your layers. The Add Folder window appears.

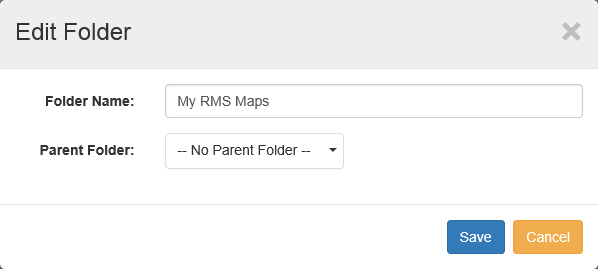

 (Edit Folder) - Click this button to change the name or parent folder of the associated folder. The Edit Folder window appears.

 (Add Sub Folder) - Click this button to add a new folder beneath the associated folder. The Add Sub Folder window appears.

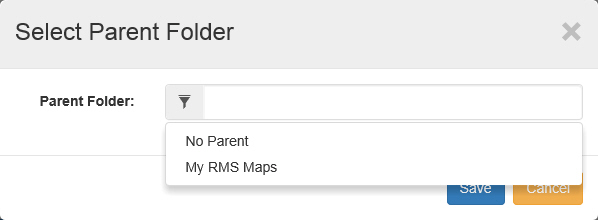

 (Move to Folder) - Click this button to move the associated layer to a sub folder. The Select Parent Folder window appears.

 (Share Layer) - Click this button to share a link to the associated layer.

 (Unshare Layer) - Click this button to unshare the associated layer.

 (Delete Map) - Click this button to delete the associated layer.

Add to Map - Click this button to add the selected layers to the map.

Cancel - Click this button to close the window without adding a layer to the map.

External Layers
